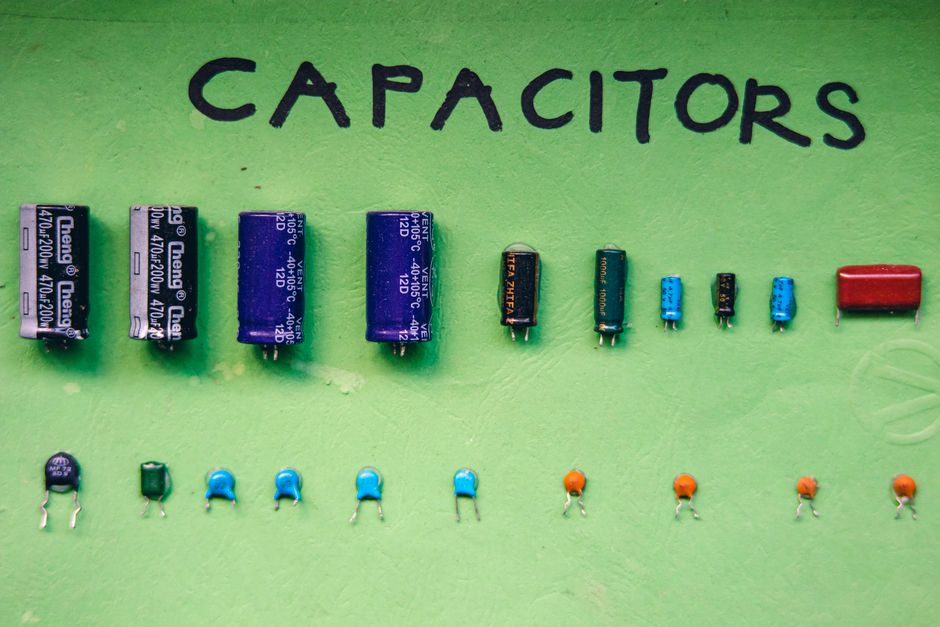

Capacitive reactance is the opposition a capacitor offers to alternating current, and you find it using the formula XC = 1 / (2πfC). In this formula, XC is the reactance in ohms, f is the frequency in hertz, and C is the capacitance in farads. For example, a 10 µF capacitor at 60 Hz has a reactance of about 265 ohms. This formula is the starting point for understanding how capacitors behave in AC circuits.
What Exactly Is Capacitive Reactance?
Capacitive reactance is not the same as resistance. Resistance opposes current flow in a steady, direct current (DC) circuit. Capacitive reactance only matters when the current is changing, like in an alternating current (AC) circuit.
A capacitor stores energy in an electric field. When voltage changes, the capacitor charges and discharges. This charging and discharging creates an opposition to the current. The faster the voltage changes, the less time the capacitor has to fully charge, so the opposition is lower. This is why capacitive reactance decreases as frequency increases.
Think of it like a swinging door. A slow push opens it easily. A fast push meets more resistance. A capacitor behaves similarly with changing voltage. The formula XC = 1 / (2πfC) captures this relationship mathematically.
How To Find Capacitive Reactance Formula And Examples Step by Step
The formula is straightforward. You need three things: the frequency of the AC signal, the capacitance value, and the constant 2π (approximately 6.28).
Here is the formula again: XC = 1 / (2πfC).
- XC is capacitive reactance in ohms (Ω).
- f is frequency in hertz (Hz).
- C is capacitance in farads (F).
- π is approximately 3.1416.
Let us walk through an example. Suppose you have a 100 nanofarad (nF) capacitor and a signal at 1,000 Hz. First, convert nanofarads to farads. 100 nF is 0.0000001 F, or 1 × 10-7 F. Plug the numbers into the formula: XC = 1 / (2 × 3.1416 × 1000 × 0.0000001). That equals 1 / (0.00062832), which is about 1,591 ohms.
Here is another example. A 47 µF capacitor at 50 Hz. Convert 47 µF to farads: 0.000047 F. Calculate: XC = 1 / (6.28 × 50 × 0.000047) = 1 / (0.014758) ≈ 67.8 ohms.
How Does Frequency Change Capacitive Reactance?
Frequency is the biggest factor. As frequency goes up, capacitive reactance goes down. This is not a small effect. It is a direct inverse relationship.
At very low frequencies, like 1 Hz, a 1 µF capacitor has a reactance of about 159,000 ohms. That is a huge opposition. At a high frequency like 1 MHz, the same capacitor has a reactance of only 0.16 ohms.
This is why capacitors are used in filters. A low-pass filter uses a capacitor to block high frequencies. The capacitor has high reactance at low frequencies, so those pass through. At high frequencies, the reactance is low, so the signal gets shunted to ground.
Some people think capacitors block DC completely. That is true. At zero frequency, the formula gives an infinite reactance. So a capacitor does block steady direct current. But for any changing signal, the opposition is finite and calculable.
How Capacitance Value Affects Reactance
Capacitance also has an inverse relationship with reactance. Larger capacitors have lower reactance at the same frequency.
A 1 µF capacitor at 60 Hz has a reactance of about 2,653 ohms. A 10 µF capacitor at the same frequency has a reactance of about 265 ohms. A 100 µF capacitor drops to about 26.5 ohms.
This is why power supply circuits use large capacitors. They need low reactance to smooth out the 60 Hz ripple from a rectifier. A small capacitor would have high reactance and not filter well.
The formula makes this clear. Doubling the capacitance halves the reactance. It is a simple reciprocal relationship.
Common Mistakes When Using the Capacitive Reactance Formula
The most common mistake is forgetting unit conversions. Capacitors are rarely labeled in farads. You usually see microfarads (µF), nanofarads (nF), or picofarads (pF).
| Unit | Symbol | Value in Farads |
|---|---|---|
| Farad | F | 1 F |
| Microfarad | µF | 1 × 10-6 F |
| Nanofarad | nF | 1 × 10-9 F |
| Picofarad | pF | 1 × 10-12 F |
If you plug 10 µF into the formula as 10 instead of 0.00001, your answer will be off by a factor of one million. Always convert to farads first.
Another mistake is confusing capacitive reactance with resistance. Reactance and resistance both have units of ohms, but they behave differently. Resistance dissipates energy as heat. Reactance stores and releases energy. You cannot add them directly. You need to use impedance, which combines resistance and reactance using the Pythagorean theorem.
A third mistake is forgetting that the formula applies only to sinusoidal AC signals. For square waves or other waveforms, the calculation is more complex. The formula XC = 1 / (2πfC) assumes a pure sine wave.
Real World Applications of Capacitive Reactance
Capacitive reactance is not just a textbook concept. It is used in nearly every electronic device.
Power supplies use capacitors to filter out AC ripple. The capacitor’s reactance at 60 Hz determines how well it smooths the voltage. Engineers calculate the needed capacitance to achieve a specific ripple voltage.
Audio crossover networks in speakers use capacitors to direct high frequencies to tweeters. The capacitor’s reactance at the crossover frequency determines which frequencies go where.
Timing circuits use capacitors and resistors together. The RC time constant depends on both resistance and capacitive reactance. This is how oscillators and timers work.
Some people claim that capacitors can “store” current or that they “pass” DC after charging. Neither is true. A capacitor blocks steady DC completely. The confusion comes from the charging transient. When you first connect a DC voltage, current flows briefly as the capacitor charges. Once charged, no more current flows. The formula XC = 1 / (2πfC) predicts infinite reactance at DC, which matches this behavior.
Frequently Asked Questions
What is the unit of capacitive reactance?
Capacitive reactance is measured in ohms, the same unit as resistance. The symbol is Ω.
Does capacitive reactance change with temperature?
Yes, but the change comes from the capacitor’s material properties, not from the formula itself. Ceramic capacitors can change value significantly with temperature, which changes their reactance.
Can I use the formula for any type of capacitor?
The formula works for all capacitors in ideal AC circuits. Real capacitors have small internal resistance and inductance that matter at very high frequencies, but the formula is accurate for most practical purposes.
What happens to capacitive reactance at very high frequencies?
At very high frequencies, capacitive reactance approaches zero ohms. The capacitor acts like a short circuit. This is why high-frequency signals pass through capacitors easily.
