What Is The Role Of Lenses In Microscopy?

Every magnified image you have ever seen through a microscope — from a high school biology class to a hospital pathology lab — is the result of lenses bending light in precise, controlled ways. The role of lenses in microscopy is to collect light from a specimen and focus it into a magnified image that the eye or a camera can see. Without lenses, a microscope is just a tube with a light source. The lenses do the actual work of magnification, resolution, and image formation.

What Is The Role Of Lenses In Microscopy?

Lenses serve three distinct functions in a microscope: they gather light from the specimen, magnify the image, and resolve fine detail. Each function depends on the physical properties of curved glass — specifically, how it refracts, or bends, light.

When light passes from air into glass, it slows down. If the glass surface is curved, different parts of the light wave slow at different points, causing the light to change direction. A convex lens — thicker in the middle than at the edges — bends parallel light rays inward until they converge at a single point called the focal point. This is the fundamental optical event that makes microscopy possible.

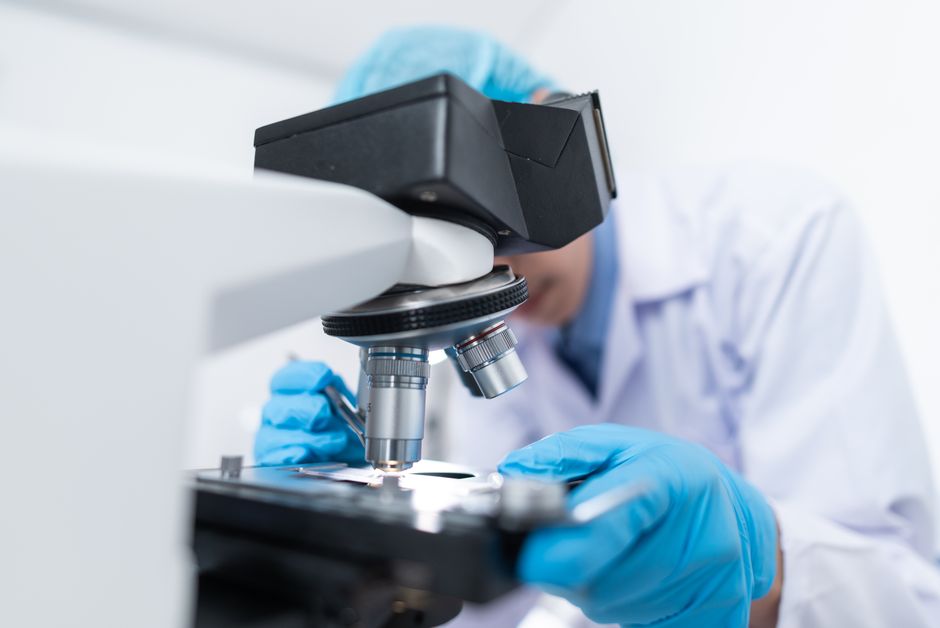

In a standard compound microscope, two lens systems work together. The objective lens sits close to the specimen and produces a magnified real image. The eyepiece lens (also called the ocular lens) then magnifies that image further to produce the final virtual image your eye sees. The total magnification is the objective magnification multiplied by the eyepiece magnification. A 40x objective with a 10x eyepiece gives 400x total magnification.

That multiplication is straightforward. What is less obvious is that magnification alone means very little without resolution.

How Do Lenses Magnify And Resolve Detail?

Magnification makes an image larger. Resolution determines whether that larger image actually shows more detail or just a bigger blur. These are separate properties, and lenses control both.

Resolution depends on the wavelength of light used and the numerical aperture (NA) of the objective lens. Numerical aperture is a measure of the lens’s ability to gather light from a wide range of angles. A lens with a higher NA captures more diffracted light from the specimen, which preserves finer detail in the image.

The relationship between resolution and numerical aperture is described by the Abbe diffraction limit. In simple terms, the smallest distance between two points that a lens can distinguish is proportional to the wavelength of light divided by the numerical aperture. Shorter wavelengths and higher numerical apertures produce better resolution.

This is why oil immersion objectives exist. By placing a drop of immersion oil between the objective lens and the glass slide, light rays that would otherwise bend away at the air-glass interface are captured instead. Immersion oil has a refractive index close to that of glass, so light passes through without significant deviation. This raises the effective numerical aperture and improves resolution. An oil immersion objective can achieve a higher numerical aperture than a dry objective of the same magnification.

For visible light with a wavelength around 500 nanometers, the theoretical resolution limit of a standard light microscope is roughly 200 nanometers — about half the wavelength of the light used. This is a physical limit imposed by the wave nature of light, not by engineering shortcomings. No arrangement of glass lenses can overcome it with visible light alone.

What Are The Different Types Of Microscope Lenses?

Microscope lenses fall into several categories based on their optical design and intended use. Each type corrects for different optical errors, called aberrations.

• Achromatic lenses correct for chromatic aberration at two wavelengths (typically red and blue) and for spherical aberration at one wavelength. They are the most common and least expensive type, found in most student microscopes.
• Plan lenses are corrected so that the entire field of view is flat. Without this correction, the edges of the image appear curved or out of focus. Plan lenses are standard in research and clinical microscopy.
• Apochromatic lenses correct chromatic aberration at three wavelengths and spherical aberration at two. They produce the most accurate color reproduction and are used in demanding applications like fluorescence microscopy.
• Plan-apochromatic lenses combine both corrections — flat field and superior color accuracy — and are the highest-quality (and most expensive) standard objectives.

Eyepieces also vary. Most are 10x, though 5x and 15x exist. Some eyepieces include a pointer or a measuring reticle for sizing specimens. The eyepiece contributes to total magnification but does not improve resolution — only the objective lens and the wavelength of light determine how much detail the microscope can resolve.

This is a point that surprises many people: swapping to a higher-power eyepiece increases magnification but not resolution. The image gets bigger without revealing anything new. It is sometimes called empty magnification.

Why Do Different Magnifications Need Different Lenses?

Each objective lens is designed for a specific magnification range because the physical distance between the lens and the specimen changes with magnification. This distance is called the working distance.

Low-power objectives (4x, 10x) have long working distances — often several millimeters to over a centimeter. You can see the gap between the lens and the slide. High-power objectives (40x, 100x) have very short working distances. A 100x oil immersion objective may have a working distance of less than 0.2 millimeters. The lens nearly touches the slide.

This is why focusing technique matters. On a compound microscope, you focus with the coarse adjustment knob only at low magnification. Once you switch to a higher-power objective, you use only the fine adjustment knob. The reason is practical: at high magnification, the working distance is so short that a wrong turn of the coarse knob can drive the objective into the slide, cracking the slide and potentially damaging the lens.

Lens design also changes with magnification because higher-power lenses need to capture light from a wider cone of angles. A 4x objective might have a numerical aperture of 0.10. A 100x oil immersion objective might have a numerical aperture of 1.25 or higher. The lens elements inside are shaped and arranged differently to handle these different optical demands.

How Do Lenses Correct For Optical Problems?

No single simple lens produces a perfect image. Lenses introduce several types of distortion, and microscope manufacturers correct for them by combining multiple lens elements made of different types of glass.

Chromatic aberration occurs because different colors of light refract by different amounts when passing through glass. Blue light bends more than red light. Without correction, this causes colored fringes around the edges of the image. Achromatic lenses use two glass elements with different dispersive properties to bring two wavelengths to a common focus.

Spherical aberration occurs because light rays passing through the edges of a spherical lens focus at a slightly different point than rays passing through the center. This softens the image. Correcting it requires combining lens elements with different curvatures and refractive indices.

Field curvature means the image forms on a curved surface rather than a flat plane. If the center of the field is in focus, the edges are not. Plan lenses add extra elements to flatten the field.

These corrections are why a quality microscope objective contains multiple glass elements — sometimes six or more — rather than a single lens. Each element addresses a specific optical problem. The engineering challenge is balancing all corrections simultaneously while keeping the lens compact enough to fit near the specimen.

What About Lenses In Other Types Of Microscopes?

Not all microscopes use glass lenses to focus light. Electron microscopes use magnetic coils as “lenses” to focus beams of electrons instead of light. Because electrons have much shorter wavelengths than visible light, electron microscopes can resolve details thousands of times smaller — down to the atomic scale in some instruments.

Scanning probe microscopes, such as atomic force microscopes, use a physical probe rather than lenses at all. They trace the surface of a specimen mechanically and build an image from the probe’s movements.

But for the standard light microscope — the kind used in classrooms, clinics, and most research labs — glass lenses remain the core technology. They have been refined for over three centuries, and the fundamental physics has not changed. What has improved is the precision of manufacturing, the quality of optical glass, and the sophistication of anti-reflective coatings that reduce light loss and glare.

The lenses in a modern microscope objective are not simple magnifying glasses. They are precision optical instruments engineered to within fractions of a wavelength of light. That precision is what allows a pathologist to distinguish cell types, a microbiologist to identify bacteria, and a materials scientist to examine the surface structure of a metal alloy.
