What Is Necessary To Create An Electromagnet?

An electromagnet is a magnet you can switch on and off. It is created by passing electric current through a wire coil, usually wrapped around an iron or steel core. Three things are necessary: a source of electric current, a conductor wound into a coil, and a core made of a magnetic material. Remove the current, and the magnetism mostly disappears.

That basic recipe has not changed since the 1820s, when William Sturgeon wrapped wire around an iron horseshoe and showed that a magnetic field appears when current flows. What has changed is our understanding of why each part matters and how the parts interact. The physics is well established. That makes this a topic where the mechanisms can be explained with confidence.

What Is Necessary To Create An Electromagnet?

You need a power source, insulated wire formed into a coil, and a magnetic core. A switch and a way to control current are useful but not strictly required. The three essentials work together, and each one affects how strong the magnet becomes.

The power source can be a battery, a power supply, or any circuit that delivers direct current. Alternating current also works, but the magnet’s polarity flips with the current, which matters for some applications and not others.

The wire must be insulated. Current has to travel around the coil rather than jumping between adjacent turns. Enamel-coated copper wire is the standard choice because copper conducts well and the coating keeps each turn electrically separate.

The core is what separates an electromagnet from a plain coil of wire. A coil alone produces a magnetic field, but a core made of iron or certain steel alloys concentrates and strengthens that field dramatically. The core material matters more than most people expect. Soft iron is used because it magnetizes easily and loses its magnetism quickly when current stops. That on-off behavior is the whole point.

Why Does the Coil Need to Be Wound in Loops?

A straight wire carrying current creates a magnetic field in a circle around itself. That field is real but weak and hard to use. Winding the wire into a coil stacks those circular fields so they add together and point in one direction through the center of the coil.

This is why the number of turns matters. More turns generally mean a stronger field for the same current. The relationship is roughly proportional: doubling the turns roughly doubles the field, all else being equal. In practice, more turns also mean more wire resistance, which reduces current for a fixed voltage. The two effects pull against each other, which is why coil design involves tradeoffs rather than simply adding more wire.

Coil geometry matters too. A long, thin coil and a short, fat coil with the same number of turns and the same current produce different field strengths. The field is strongest inside the coil and weakest at the ends. This is standard electromagnetism, described by Ampère’s law, and it is not in dispute.

What Does the Core Material Do?

The core concentrates magnetic flux. Certain materials, particularly iron, contain microscopic magnetic domains that align with an applied field. When current flows through the coil, those domains line up and add their own magnetic contribution to the coil’s field. The result can be hundreds of times stronger than the coil alone.

Not all core materials behave the same way. Soft iron is the classic choice for electromagnets because it magnetizes and demagnetizes readily. Steel works too but can retain some magnetism after the current stops, which is called remanence. That is sometimes useful and sometimes a problem.

Air-core coils exist and are used where a core would interfere, such as in some radio frequency applications. They work, but the field is much weaker for the same current and turns. The core is not optional for a strong electromagnet. It is optional only when strength is not the goal.

How Do Current and Voltage Affect Magnet Strength?

More current means a stronger magnetic field. This is one of the most direct relationships in electromagnetism: field strength is proportional to current, all else being equal. Doubling the current doubles the field.

Voltage matters indirectly. For a given coil resistance, higher voltage pushes more current through the wire, following Ohm’s law. But the coil heats up as current flows, and resistance rises with temperature. Push too much current through too thin a wire and the insulation can fail or the wire can melt. This is a real design constraint, not a theoretical one.

This is why electromagnet design involves balancing current, wire gauge, and heat dissipation. Industrial electromagnets used in cranes and MRI machines have cooling systems for exactly this reason. A small classroom electromagnet does not, which is why it runs on modest batteries and short bursts of current.

What Role Does the Number of Turns Play?

More turns create a stronger field for the same current. The field is proportional to the product of current and number of turns, a quantity called ampere-turns. A coil with 100 turns carrying 1 amp produces roughly the same field as a coil with 200 turns carrying 0.5 amps, assuming the same geometry and core.

This is a useful way to think about design. If you cannot increase current without overheating the wire, you can add turns instead. If you cannot fit more turns, you can increase current within safe limits. The ampere-turns product is the number that matters for field strength.

There is a practical limit. More turns mean more wire, which means more resistance, which means less current for a fixed voltage. At some point adding turns stops helping and starts hurting. The optimum depends on the power source and the wire gauge.

What Are the Common Practical Mistakes?

Using uninsulated wire is the most common error. The turns short together and current bypasses the coil, so the field collapses. The wire must be insulated along its length, with only the ends stripped for connection.

Winding the coil loosely is another. Turns that are spread out or overlapping unevenly produce a weaker and less predictable field than a tight, uniform coil. Neat winding is not just aesthetic. It affects performance.

Using the wrong core material causes confusion. A core made of stainless steel or certain alloys may barely magnetize at all, leading to the false conclusion that the design is wrong. Soft iron or low-carbon steel works reliably. Some stainless steels are nearly non-magnetic, which surprises people who assume all steel behaves alike.

Ignoring heat is a safety issue. A coil that gets too hot can burn insulation, short circuit, or start a fire. Small electromagnets should be run briefly and allowed to cool. This is standard practice in classrooms and labs, not an overabundance of caution.

Does an Electromagnet Need a Complete Circuit?

Yes. Current must flow in a closed loop from the power source, through the coil, and back. An open circuit means no current, and no current means no magnetic field. This sounds obvious, but a loose connection or a broken wire is a common reason a homemade electromagnet fails.

A switch is not strictly necessary, but it makes the circuit easy to open and close. Without one, you connect and disconnect the wire manually, which is fine for a demonstration but awkward for repeated use. A switch also reduces the chance of a short circuit from fumbling with live wires.

The direction of current determines the direction of the magnetic field. Reverse the connections and the north and south poles swap. This is described by the right-hand rule, a reliable way to predict polarity from current direction and coil winding direction.

What About Alternating Current?

Electromagnets work on alternating current too. The field reverses direction with the current, typically 60 times per second in US power systems. For applications like lifting scrap metal, this is fine. For applications that need a steady field, direct current is used.

AC electromagnets face an additional challenge: the changing field induces currents in the core itself, called eddy currents, which cause heating and energy loss. Laminated cores, made of thin insulated sheets stacked together, reduce this effect. This is why transformer cores are laminated rather than solid. It is a design detail that matters at power-line frequencies but not for a battery-powered demonstration.

How Strong Can an Electromagnet Get?

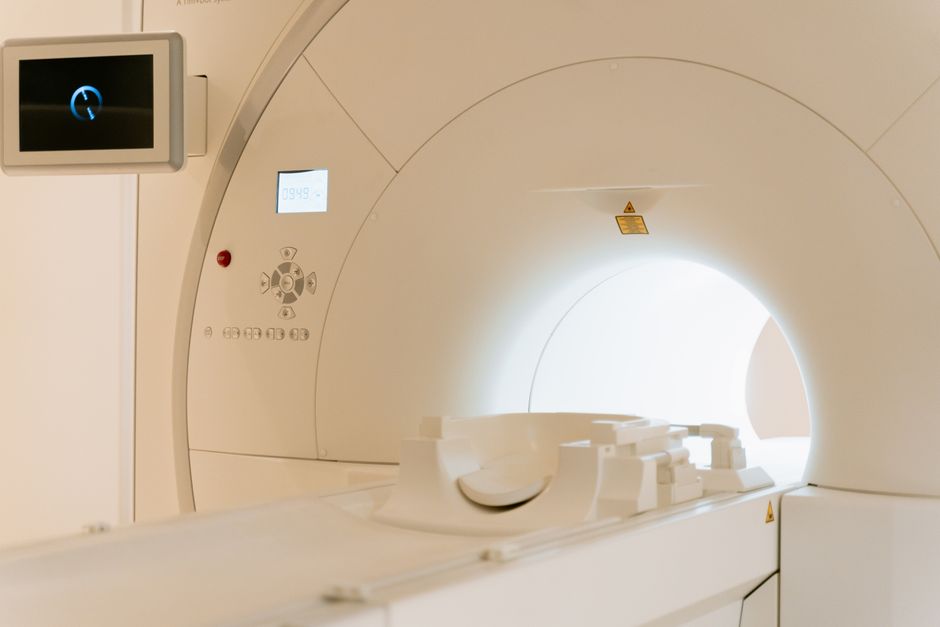

There is no simple upper limit, but practical limits are set by heat, power supply, and material properties. Industrial electromagnets can lift many tons. MRI machines use superconducting electromagnets that produce fields far stronger than any iron-core design could sustain, because superconductors carry current with zero resistance and therefore generate no heat.

For ordinary iron-core electromagnets, the core saturates. Beyond a certain field strength, adding more current produces little additional magnetization because the magnetic domains are already aligned. Saturation is a well-established property of ferromagnetic materials and sets a ceiling on what a given core can achieve.

This is why extremely strong fields require different approaches, such as superconducting coils or specialized core materials. For most practical purposes, saturation is not a concern. It becomes relevant only when designing for maximum field strength.
