Filling your own capsules at home is a straightforward process once you understand the basic mechanics. You start by separating the capsule halves, fill the base with your powder, and then press the tops back on to complete the seal. The key to doing this efficiently and accurately is using the tamper and spreader tools that come with your machine, which ensures each capsule contains a consistent dose.
What Do You Need Before You Start?
Before you begin, gather your supplies. You will need your capsule filling machine, empty capsules, your chosen powder, and a small spatula or scraper. It is also wise to have a clean, dry work surface with good lighting.
The powder you use must be fine and free of clumps. If your powder has lumps, you will get inaccurate fills and a messy process. You can grind clumpy powders with a mortar and pestle or run them through a fine mesh sieve to create a consistent texture. This step matters more than most people realize.

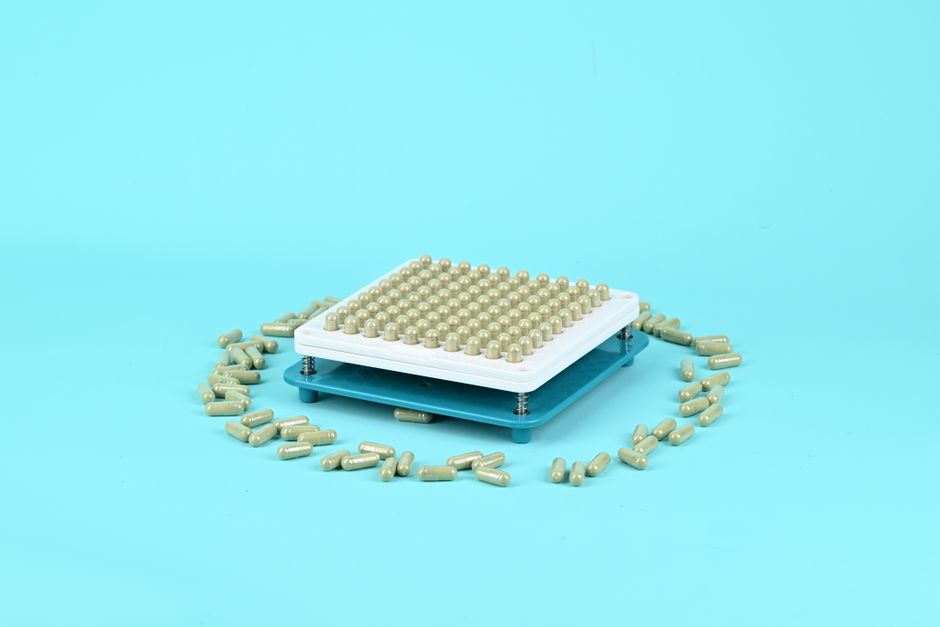

There are two main types of machines. One fills a single capsule at a time. The other, a tray-style machine, fills 100 or more capsules at once. The basic steps are the same, but tray machines use a different loading method. This guide focuses on the common tray-style machine, which is the most popular for home use.
How To Use A Capsule Filling Machine Step By Step?
Follow these steps in order to get the best results. Rushing or skipping steps often leads to broken capsules or uneven doses.
Step 1: Separate the Capsules. Hold the top half of the capsule (the cap) and twist the bottom half (the body). The two pieces should separate easily. Place the longer bodies into the holes on the base plate of your machine. Ensure each capsule body is fully seated and level with the top of the plate.
Step 2: Attach the Base Plate. Once all the capsule bodies are in place, snap the base plate onto the loading tray. Turn the entire assembly over so the open capsule bodies are facing upward. Remove the base plate. The capsule bodies should remain in the tray, ready to be filled.
Step 3: Add Your Powder. Pour a generous amount of your powder over the top of the capsule bodies. Do not be shy here. You want a mound of powder that covers the entire surface of the tray. Spread it evenly with the flat scraper tool, pushing the powder into every open capsule.
Step 4: Tamp the Powder. This is the step that ensures consistent fill weights. Take the tamper tool and press it down firmly over the capsules. This compresses the powder inside each capsule body. Some machines have a base that allows you to press the tamper down with a lever or by hand. Apply steady, even pressure.
Step 5: Refill and Retamp. After the first tamp, the capsules will have more room. Add more powder to the top of the tray. Use the spreader to fill the capsules again and press with the tamper once more. Repeat this process a third time. Most capsules require three tamping cycles to reach their full capacity.
Step 6: Scrape the Surface. After the final tamp, use the flat edge of the scraper to sweep excess powder off the top of the tray. This ensures the capsule bodies are filled to the top but not overflowing. A clean surface makes the next step much easier.
Step 7: Place the Capsule Caps. Now you will work with the top halves of the capsules. Align the cap plate over the filled capsule bodies. The caps should be positioned so they line up perfectly with the bodies below. Press the cap plate down firmly. You should hear a slight click or feel a gentle snap as the caps seal onto the bodies.
Step 8: Release the Finished Capsules. Turn the entire machine over. Remove the base plate and gently push the finished capsules out of the tray. Your filled capsules are now complete and ready to be stored in an airtight container.
How Do You Get Consistent Fill Weights?
Consistency is the main reason people use a filling machine instead of doing it by hand. The tamping process is what creates uniformity. If you only fill the capsules once without tamping, the weight will vary significantly from capsule to capsule.
The type of powder you use affects how much it compresses. Dense powders like creatine or certain herbal extracts will pack tightly. Light, fluffy powders may require more tamping cycles to reach the target weight. You should always weigh a few finished capsules on a milligram scale to check your process. If they are under your target, add another tamping cycle. If they are over, you may need to use less powder initially.
Humidity also plays a role. Powders that absorb moisture from the air can become sticky and difficult to work with. Work quickly in a dry environment. If your powder clumps easily, consider using a desiccant packet in your storage container.
Which Capsule Size Should You Use?
Capsule sizes are numbered, with larger numbers meaning smaller capsules. Size 00 is the most common size for home use because it holds a substantial amount of powder—roughly 500 to 800 milligrams depending on the powder density. Size 0 holds less, around 400 to 600 milligrams. Size 1 holds even less and is often used for smaller doses.
Choosing the right size depends on your dose. If you are filling a supplement where you need 500 milligrams per serving, a size 00 capsule is appropriate. If you only need 200 milligrams, a size 0 or size 1 capsule will work better. A capsule that is only half full is harder to seal consistently and may not close properly.
Your filling machine is designed for a specific capsule size. A machine built for size 00 capsules will not work with size 0 capsules. Check your machine’s specifications before buying capsules.
What Mistakes Cause Broken or Damaged Capsules?
Broken capsules are almost always a sign of technique issues, not a faulty machine. One common mistake is using capsules that are old or brittle. Gelatin capsules can dry out over time. If your capsules crack easily, try a fresh batch or switch to vegetarian capsules, which are often more flexible.
Another frequent error is not aligning the cap plate correctly. If the caps are not perfectly aligned with the bodies, pressing down will crush the capsule edges. Always double-check alignment before applying pressure.
Pressing too hard or too fast on the tamper can also cause the capsule bodies to split at the bottom. Use firm, even pressure rather than a quick, forceful push. If you feel resistance, stop and check for obstructions rather than forcing the tool down.
How Do You Clean and Maintain Your Machine?
Proper cleaning prevents cross-contamination between different powders and keeps the machine working smoothly. After each use, disassemble your machine completely. Most parts are plastic and can be washed in warm, soapy water. Rinse thoroughly and allow all parts to dry completely before storing.
Do not put your machine parts in the dishwasher. The heat can warp the plastic and ruin the alignment. Hand washing is the only safe method.
If you use the machine for different supplements, clean it thoroughly between batches. Some powders have strong odors or colors that can linger. A quick wash with mild soap usually removes these residues. For oily powders, you may need to use a degreasing dish soap.
Store your machine in a dry place. Moisture can cause mold growth on the machine and contaminate your capsules. Keep it in a sealed bag or container if you live in a humid climate.
Is It Safe to Fill Capsules at Home?
Filling capsules at home is safe for most people, but there are important caveats. The main risk is inaccurate dosing. If you are filling a prescription medication, you should not do this without your pharmacist’s guidance. Some medications have narrow therapeutic windows, meaning even small dose variations can be dangerous.
For over-the-counter supplements, home filling is generally considered safe. However, you must be confident in the purity and potency of your powder source. Bulk powders from unknown suppliers may not contain what the label claims. Third-party testing is the only way to verify purity.
If you are pregnant, nursing, or have a medical condition, talk to your doctor before using any supplement powder. This is true whether you buy pre-filled capsules or fill them yourself.
One more thing to consider: some powders are hazardous to inhale. Fine herbal powders or certain chemicals can irritate your lungs. Wear a dust mask if you are working with powders that create visible dust clouds. Work in a well-ventilated area.
Frequently Asked Questions
How many times should I tamp the capsules?
Tamp three times for most powders to achieve a full, consistent fill. Dense powders may need only two tamps, while very light powders might need four.
Can I use any capsule size with my filling machine?
No. Each filling machine is built for a specific capsule size, usually size 00 or size 0. Using the wrong size will prevent the machine from sealing correctly.
How do I know if my capsules are sealed properly?
Properly sealed capsules should feel snug with no visible gap between the cap and body. Give the capsule a gentle squeeze—if it pops open easily, it was not sealed fully.
Is a capsule filling machine worth it for personal use?
Yes, if you regularly take powdered supplements. A machine saves time and produces more consistent doses than hand-filling, which is especially valuable for daily use.
